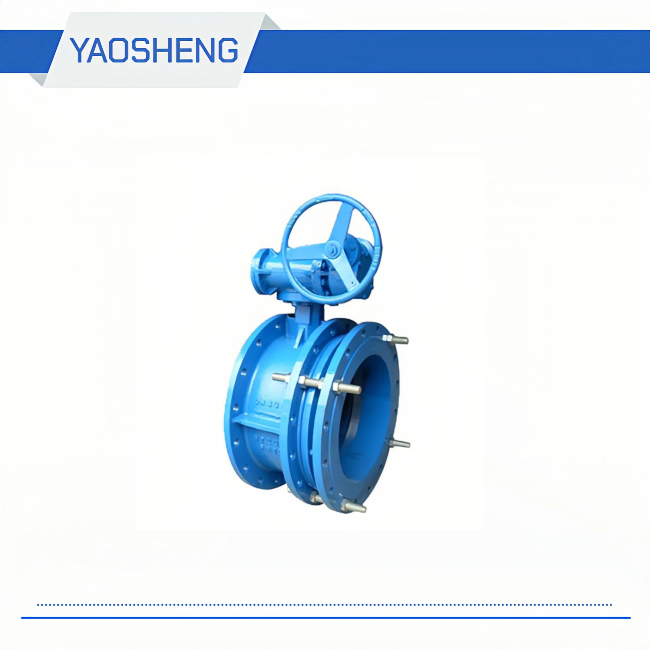

SD343X/F-10 Worm Driven Flange Expension Butterfly Valve

Medium temperature: -10-120 ℃
Medium: drinking water, sewage, seawater, etc.
Caliber: DN50-2000mm
Pressure: 1.0mpa
Body Material: Ductile Iron, Grey Iron
Connection method: flange

Product Details

Worm Driven Flange Expension Butterfly Valve Main parts and materials
Parts nameMaterial
Valve bodyGray cast iron, ductile cast iron
DiscDuctile iron
Valve stemstainless steel
Sealing ringVarious rubber

SD343X/F-10 Worm Driven Flange Expension Butterfly Valve

Worm Driven Flange Expension Butterfly Valve Function and specification
TypeNominal pressure
(mpa)
esting pressure(mpa)Suitable
temperature
Suitable
medium
Strength
(Water)
seal
SD343X-101.0 1.50 1.10 —15—+120℃Drinking water, sewage, seawater, etc.


Worm Driven Flange Expension Butterfly Valve Outline and connecting measurement
TypeNominal
DN(mm)
DD1dbcLn-d04-M
L0LmaxLmin
D341X-10/1630044540037028572823022528-23M20
350505460429306430132127112-23M20
400565515480327031333328312-28M24
450615565530327633435430416-28M24
500670620582347634636631616-28M24
600780725682368939841836816-31M27
7008958407944011542544539520-31M27
80010159509014412045547542520-34M30
9001115105010014612048550545524-34M30
10001230116011125015049551546524-37M33
12001455138013285617554256251228-40M36
14001675159015306219561263258232-43M39
16001915182017506822064066061036-49M45
18002115202019507024571073068040-49M45
