Medium: Toxic, harmful and flammable gas such as gas
Operating temperature: ≤120 ° C NBR rubber
caliber: DN200-DN2000
pressure: 0.05-0.25MPA
valve body material: WCB
connection method: flange
design standard: national standard

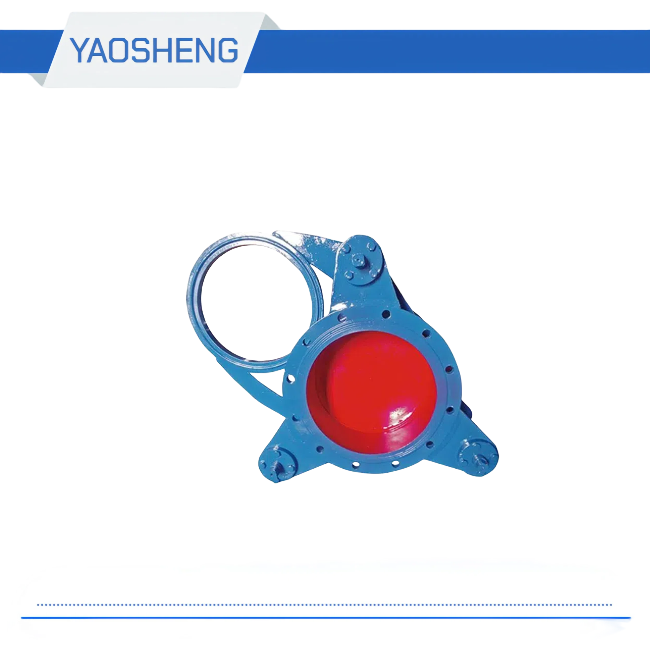

| F43CX manual fan blind valve Material of main parts | ||
| Part Name | material | |
| Body / Valve | WCB | |
| Connecting shaft / retractor | WCB, 304 | |
| Sealing ring | rubber | |
| F43CX Performance Specification | |||||||
| model | Nominal pressure (MPA) | Test pressure (mpa) water | Applicable temperature (℃) | Applicable medium | |||
| strength | seal | ||||||
| F943CX-2.5 | 0.3 | 0.28 | 0.40 | ≤120 ℃ nitrile rubber | Toxic, harmful and flammable gases such as gas | ||
| Manual fan-shaped blind plate valve F43CX appearance size and connection size | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
Long series L | Short series L | D | D1 | b | n-φd | ||
| F43CX-2.5 | 200 | 500 | 230 | 320 | 280 | 14 | 8 * φ18 |
| 250 | 500 | 250 | 375 | 335 | 14 | 12 * φ18 | |
| 300 | 500 | 270 | 440 | 395 | 16 | 12 * φ22 | |
| 350 | 500 | 290 | 490 | 445 | 16 | 12 * φ22 | |
| 400 | 600 | 310 | 540 | 495 | 16 | 16 * φ22 | |
| 450 | 600 | 330 | 595 | 550 | 20 | 16 * φ22 | |
| 500 | 600 | 350 | 645 | 600 | 20 | 20 * φ22 | |
| 6500 | 600 | 370 | 755 | 705 | 20 | 20 * φ26 | |
| 700 | 600 | 390 | 860 | 810 | 20 | 24 * φ26 | |
| 800 | 600 | 410 | 975 | 920 | 22 | 24 * φ30 | |
