  • Hydraulic Electric Control Valve 600X

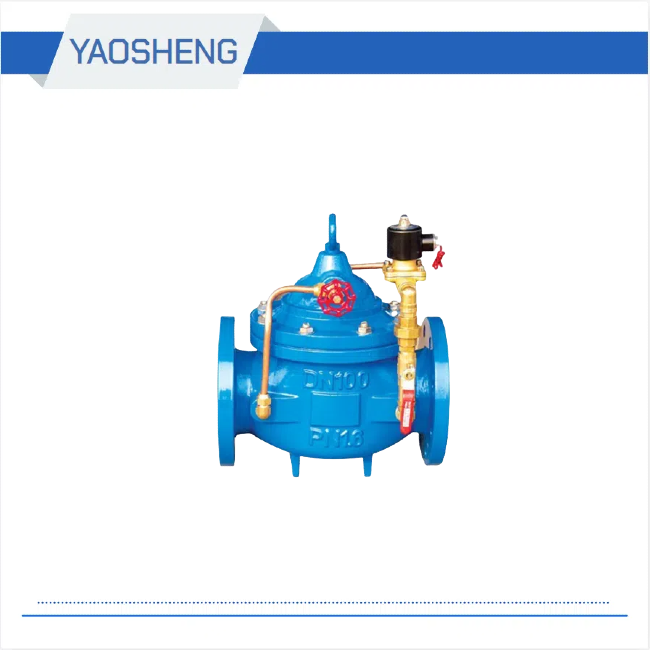

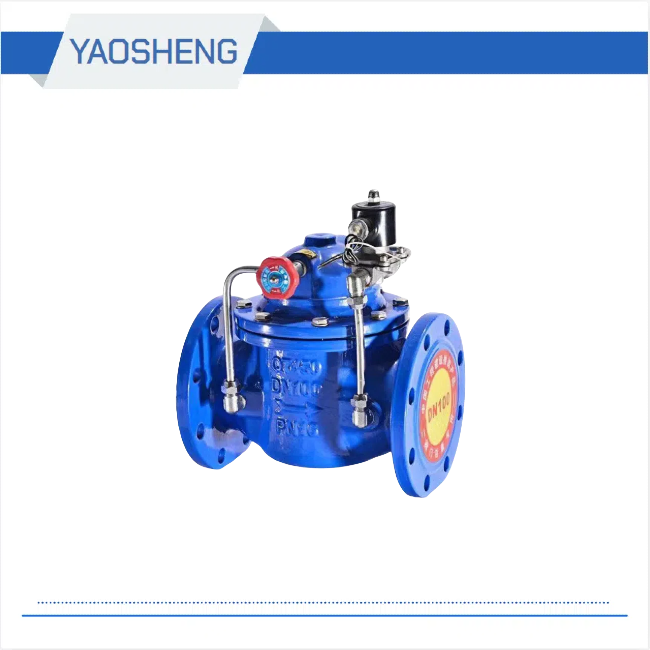

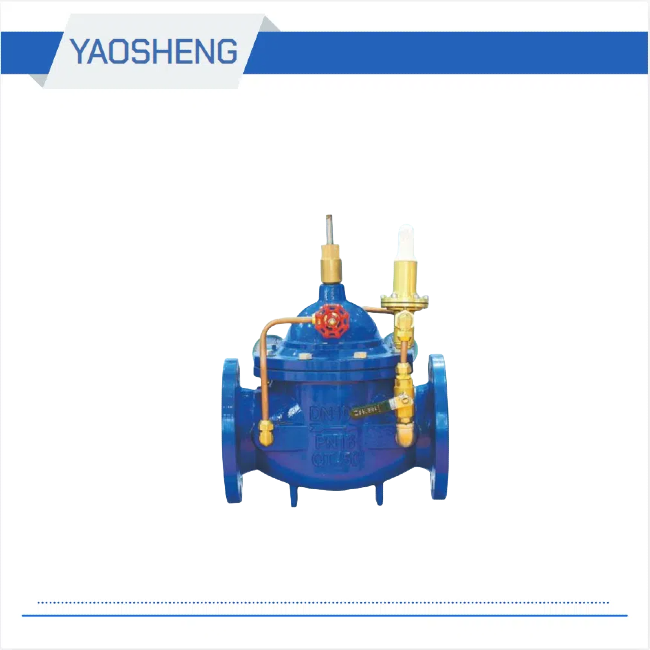

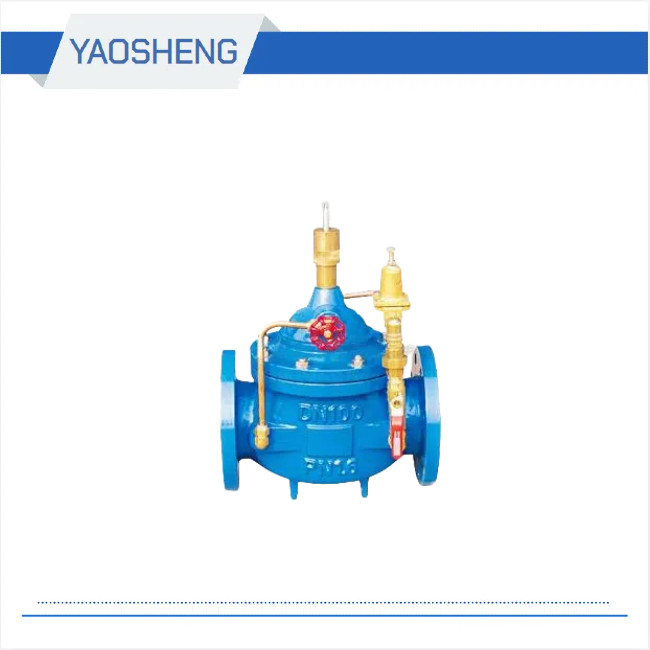

Hydraulic Electric Control Valve 600X

Medium: water

Use temperature: ≤80 ℃

Caliber: DN25-450

Pressure: 1.0-2.5MPa

Body material: cast iron

Connection method: flange


Product Details

Hydraulic Electric Control Valve 600X Material of main parts
Part Namematerial
Valve bodycast iron
Valve stemChrome stainless steel

Application: The valve is often used in water supply and drainage and automatic control in industrial systems, the control response is accurate and fast

Hydraulic electric control valve 600X

Hydraulic electric control valve 600X performance specification
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
caseSealed (water)
Hydraulic electric control valve 600X1 1.6 2.51.5 2.4 3.751.1 1.76 2.75≤80 ℃water


Water Conservancy Electric Control Valve 600X Dimensions and Connection Dimensions
DN506580100125150200250300350400
L203216241292330356495622622787914
H1300288310340380410440460480516560
H395385420500540575665720750830900
